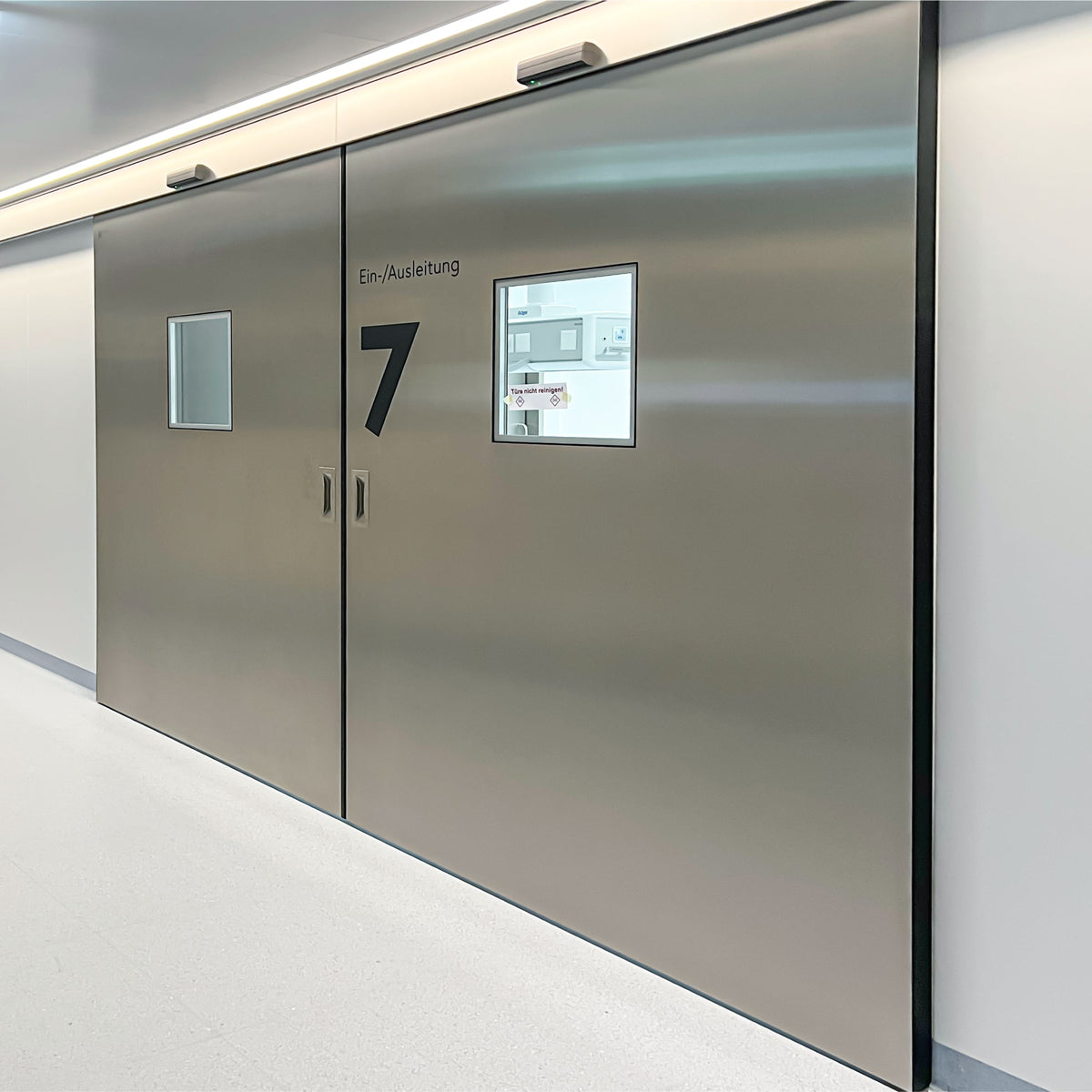

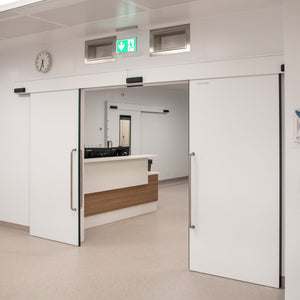

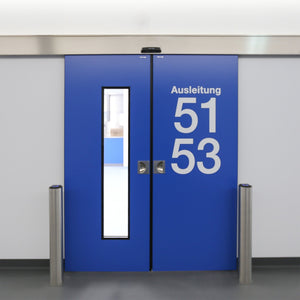

The double-leaf, floor-to-ceiling sliding door from HT Group creates spacious passageways and supports safe, efficient transport in demanding healthcare buildings. It is particularly suitable for areas in hospitals, clinics, and laboratories where tall medical equipment, beds, or transport trolleys are moved.

The frame is manufactured to suit the specific installation situation and is available as standard in brushed V2A stainless steel or optionally in sheet steel. Both versions can be powder-coated according to RAL or NCS colors. The two floor-to-ceiling door leaves are available in brushed stainless steel, laminate, powder-coated or pre-coated sheet steel. Optionally, they can be covered with colored toughened safety glass.

The sliding door can be equipped with a Dorma ES 420 automatic drive or a manual sliding track system. The drive box, which is integrated into the ceiling, has a hinged inspection panel, ensuring easy access for maintenance and service. Depending on the room requirements, numerous equipment options are available – from viewing windows and privacy solutions to radiation and laser protection, as well as various control, locking, and safety components.


Technical data at a glance

• Clear frame width: 1,600–3,000 mm
• Outer frame dimension: clear frame width + 100 mm
• Clear passage width: clear frame width − 250 mm with bow handle
• Frame height: up to 3,000 mm
• Wall thickness: standard up to 200 mm, optionally up to 450 mm
• Drive box length: 2 × clear frame width + 600 mm
• Door leaf width: clear frame width + 50 mm
• Door leaf weight: standard up to 2 × 125 kg, special version up to 175 kg per door leaf
• Frame: brushed V2A stainless steel (1.4301), optionally sheet steel; both optionally powder-coated according to RAL or NCS
• Door leaf surface: brushed V2A stainless steel, laminate, powder-coated or pre-coated sheet steel, optionally colored toughened safety glass
• Version: floor-to-ceiling, running in front of the wall or in a niche; optionally for retrofitting
• Drive: Dorma ES 420 automatic drive or manual sliding track system
• Drive box: ceiling-integrated with hinged inspection panel
• Options: radiation protection Pb 0.5–3 mm, laser protection, viewing windows, blinds, roller blinds, LC glass, airlock function, access and control elements, HT Control
• Safety: according to DIN EN 16005, with infrared sensor strip and Flat Scan


Areas of application

• Hospitals and clinics
• Operating areas and functional rooms near operating theatres
• Examination, treatment, and diagnostic areas
• Intensive care and emergency areas
• Rooms with large-volume medical equipment
• Laboratory and research areas
• Care and patient areas
• Transport routes and functional rooms with high requirements for passage width and room height


More detailed information can be found in the data sheet:
Data sheet
