The passive gas-tight fire lock EI60 consists of a gas-tight fire revolving door EI60 and a GMP lock chamber with a GMP lock door. The lock is specifically designed for use in pharmaceutical production facilities and GMP Class C and D clean rooms ; it is not connected to any ventilation system.

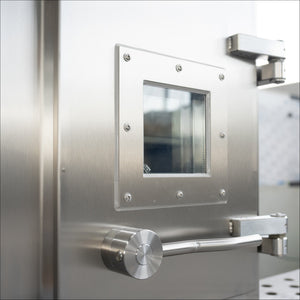

The material lock consists of a double-walled construction. The GMP door is made of flush-mounted safety glass and sealed with a circumferential EPDM gasket. The hinges can be adjusted three-dimensionally. The fire door can withstand fire for up to 60 minutes, depending on requirements, and is gas-tight. The interior chamber and body are made of ground stainless steel 1.4301 . All corners and edges are deburred and welded. The material lock can be installed in a clean room wall or mounted on a height-adjustable base frame.

The supply and exhaust air is provided by the on-site air handling unit. The supply air flows vertically from the technical structure through a HEPA filter according to the turbulence-free principle.
Displacement flow into the interior of the lock. The exhaust air is extracted from the lower area of the perforated interior walls of the lock by the on-site air conditioning system.

All surfaces inside and outside the material lock are resistant to conventional cleaning and disinfection agents and are suitable for daily cleaning.

For more detailed information, please refer to the respective data sheet:

Data sheet
