The EAO push-button with a person symbol is a robust control element for automatic door systems.

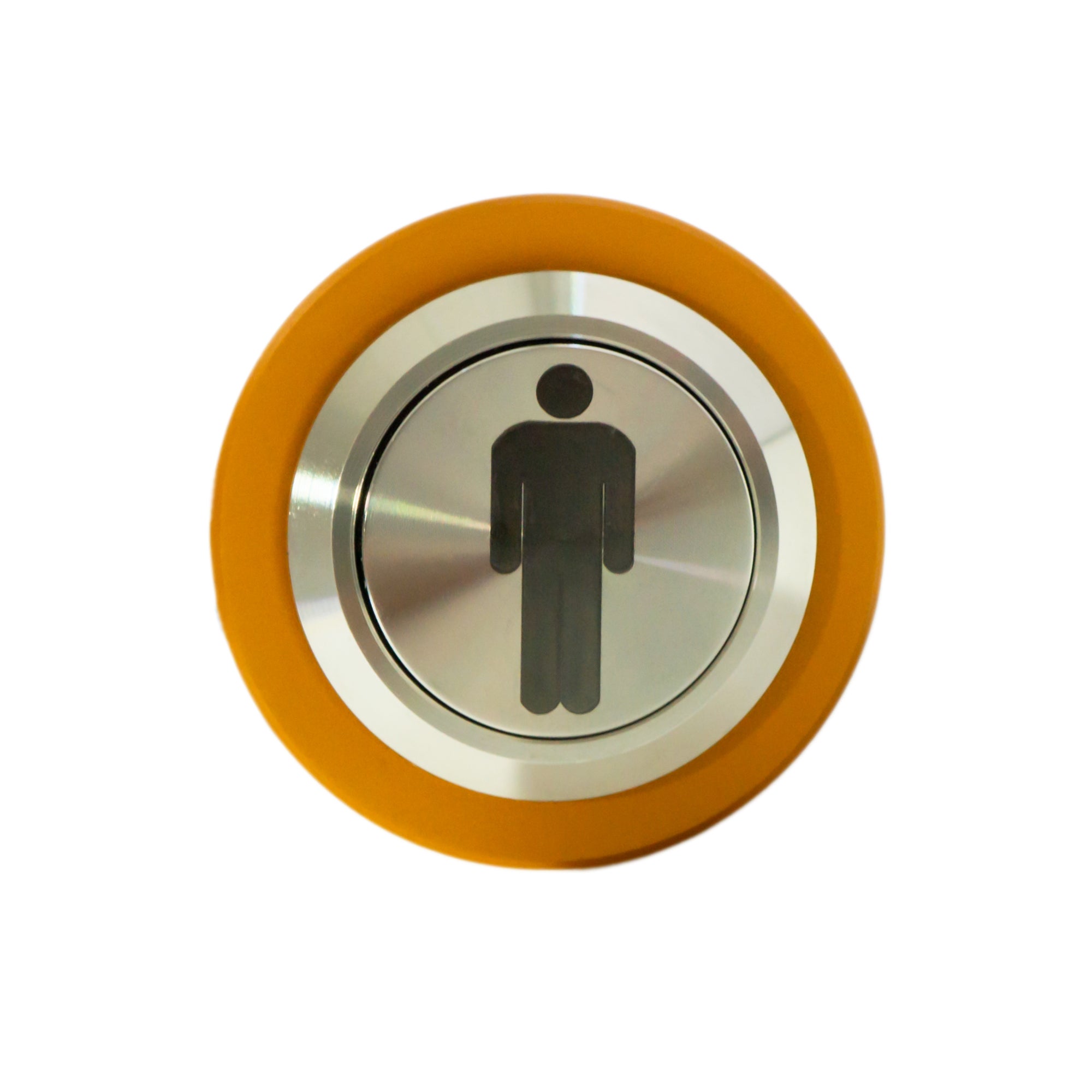

The person symbol on the actuation surface allows for quick and unambiguous identification of the function. In conjunction with a suitably configured door controller, the button can trigger, for example, the pedestrian opening or partial opening of an automatic sliding door.
In this mode, the door only opens to the width required for people to pass through. This can prevent unnecessarily large door openings and, for example, contribute to reducing air exchange, drafts, and energy losses.

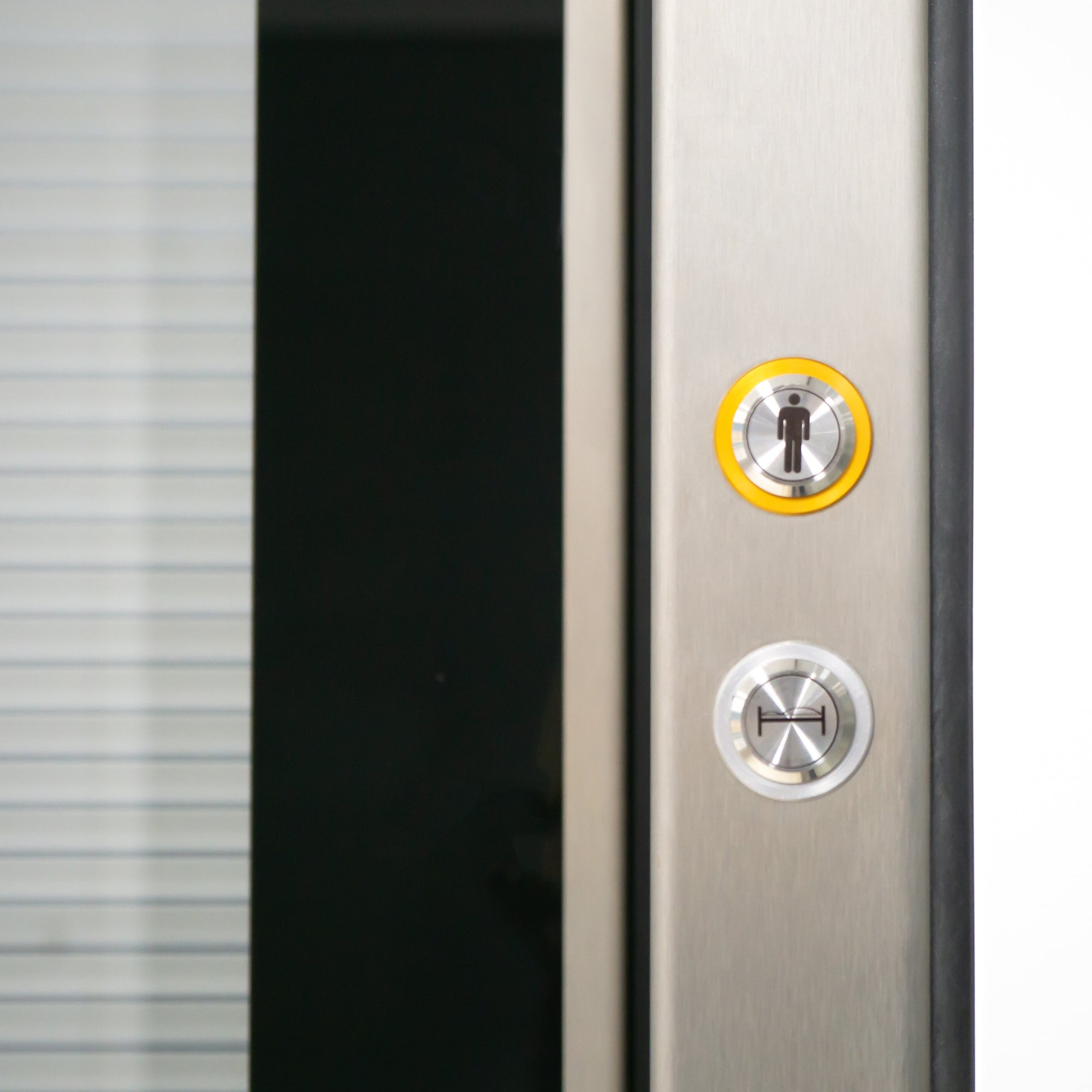

The flat button features a round stainless steel front and is suitable for installation in control panels, door frames, and technical housings. With an IP65/IP67 front protection rating, it is also designed for demanding operating conditions. The push-button operates as a momentary switch with a snap-action switching element.
Intended use
Control element and pulse generator for the pedestrian opening of automatic door and sliding door systems.
Typical applications include:
- Pedestrian opening of automatic sliding doors
- Partial opening for normal pedestrian traffic
- Access to operating rooms and functional areas
- Examination and treatment rooms
- Hospital and clinic corridors
- Intensive care and nursing areas
- Laboratory and research areas
- Cleanroom and hygiene areas
- medical facilities
- automatic door systems in healthcare environments
The actual opening width achieved depends on the connected door controller and its configuration.
Technical data at a glance
- Basic type: EAO 82-5153.1000
- Version: Push-button with blue arrow symbol
- Mounting aperture: Ø 22,5 mm
- Front diameter: Ø 28 mm
- Installation depth 36 mm
- Front and button cap: Stainless steel, round and flat
- Front protection rating: IP65 / IP67
- Switching function: Momentary
- Contacts: 1 changeover switch
- Switching system: Snap-action switching element
- Switching voltage: 24 V AC/DC
- Switching current: 0.2 A
- Contact material: Gold-plated silver

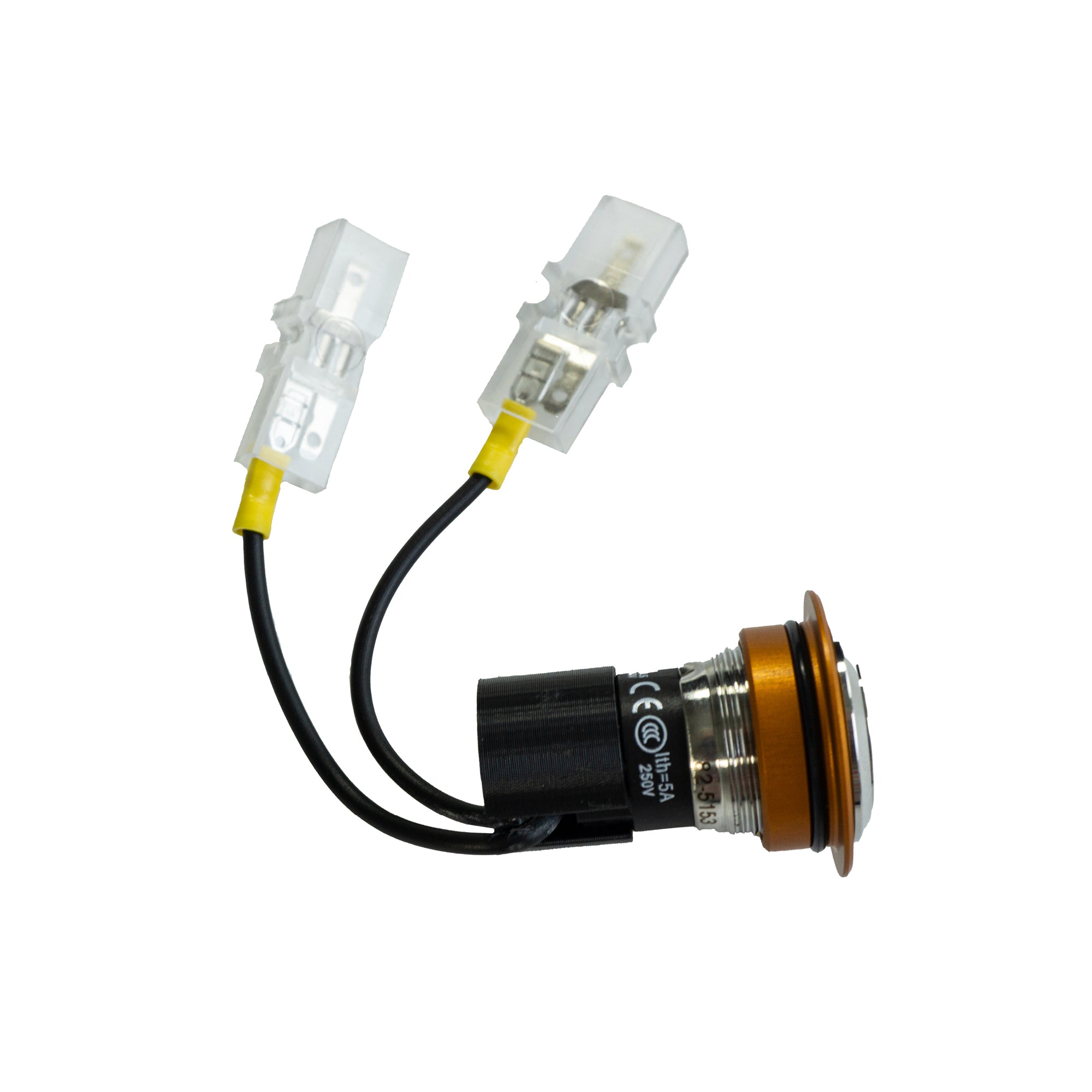

- Connection: Flat plug 2.8 × 0.8 mm / H05V-K 0.25 BK
- Illumination: Not illuminable
Weight: 0.018 kg
The EAO push-button with a person symbol is a robust control element for automatic door systems.
The person symbol on the actuation surface allows for quick and unambiguous identification of the function. In conjunction with a suitably configured door controller, the button can trigger, for example, the pedestrian opening or partial opening of an automatic sliding door.
In this mode, the door only opens to the width required for people to pass through. This can prevent unnecessarily large door openings and, for example, contribute to reducing air exchange, drafts, and energy losses.
The flat button features a round stainless steel front and is suitable for installation in control panels, door frames, and technical housings. With an IP65/IP67 front protection rating, it is also designed for demanding operating conditions. The push-button operates as a momentary switch with a snap-action switching element.
Intended use
Control element and pulse generator for the pedestrian opening of automatic door and sliding door systems.
Typical applications include:
- Pedestrian opening of automatic sliding doors
- Partial opening for normal pedestrian traffic
- Access to operating rooms and functional areas
- Examination and treatment rooms
- Hospital and clinic corridors
- Intensive care and nursing areas
- Laboratory and research areas
- Cleanroom and hygiene areas
- medical facilities
- automatic door systems in healthcare environments
The actual opening width achieved depends on the connected door controller and its configuration.
Technical data at a glance
- Basic type: EAO 82-5153.1000
- Version: Push-button with blue arrow symbol
- Mounting aperture: Ø 22,5 mm
- Front diameter: Ø 28 mm
- Installation depth 36 mm
- Front and button cap: Stainless steel, round and flat
- Front protection rating: IP65 / IP67
- Switching function: Momentary
- Contacts: 1 changeover switch
- Switching system: Snap-action switching element
- Switching voltage: 24 V AC/DC
- Switching current: 0.2 A
- Contact material: Gold-plated silver
- Connection: Flat plug 2.8 × 0.8 mm / H05V-K 0.25 BK
- Illumination: Not illuminable
Weight: 0.018 kg
EAO push-button 19 mm stainless steel – symbol person – orange
SKU:ELE01905
