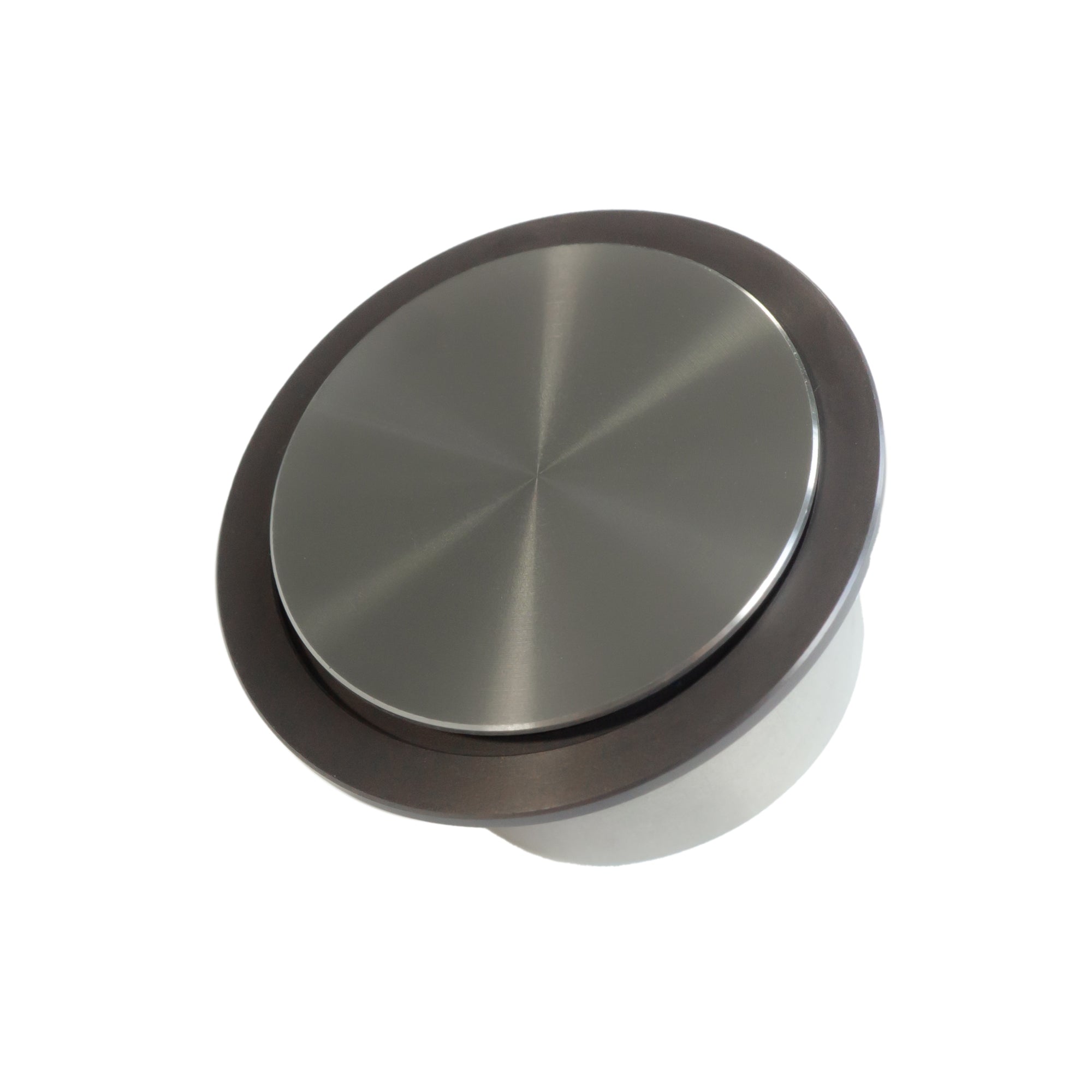

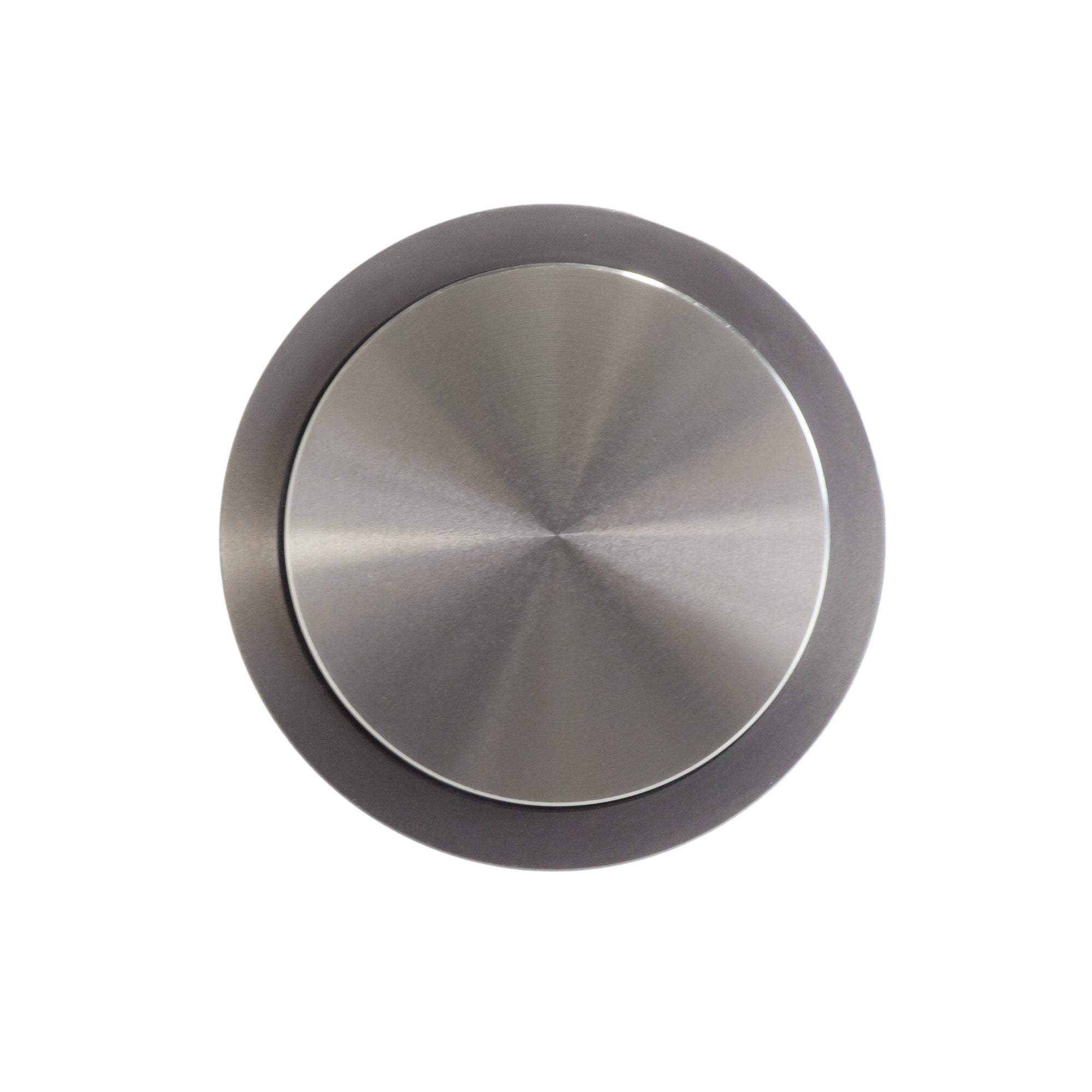

The Snap-in Piezo Button Permanent Open is a robust control element for automatic door systems, particularly suitable for activating the permanent open operating function.

In conjunction with an appropriately configured door control system, the button can be used to fully open an automatic sliding door and hold it in the open position. This function is suitable, for example, for situations with increased pedestrian or material traffic, where repeated automatic opening and closing of the door should be avoided.

Piezo technology enables reliable operation with a very short switching travel. Due to its sealed operating surface, the button is particularly suitable for areas with high demands on cleaning, hygiene, and mechanical resilience.


Intended Use

The snap-in piezo button serves as a control element for the permanent open function of automatic door and sliding door systems.

Typical applications include:

• Activation of the permanent open function
• Increased pedestrian traffic
• Patient and bed transport
• Material and equipment transport
• Operating rooms and functional areas
• Examination and treatment rooms
• Hospital and clinic corridors
• Laboratory and research areas
• Cleanroom and hygiene areas
• Automatic door systems in healthcare environments

The actual triggered function and the type of reset depend on the connected door control system and its configuration.


Features and Benefits

• Piezo button for the permanent open function
• Simple and quick activation of the door function
• Snap-in design for compact integration
• Very short actuation travel
• Low required actuation force
• Robust, sealed operating surface
• High durability of piezo technology
• Easy-to-clean surface
• Suitable for heavily used automatic door systems
• Suitable for hygienically demanding areas
• Suitable as a replacement and service component


Technical Specifications

• Switching function: Button
• Actuation force: ≤ 3 N with central actuation
• Actuation travel: 0.002 mm
• Durability: up to 20 million actuations at nominal switching capacity
• Switching current: max. 1 A
• Switching capacity: 10 W
• Operating temperature: -20 to +60 °C
• Protection class PSE IV 22: IP67 / IP69K
• Sealed, easy-to-clean surface


Installation of the Snap-in Version

The following installation dimensions are provided for the HT snap-in version:

• Outer diameter of bezel: approx. Ø 31 mm
• Button diameter: approx. Ø 25 mm
• Mounting cut-out: Ø 22.5 mm
• Suitable for material thicknesses of approx. 1–2 mm

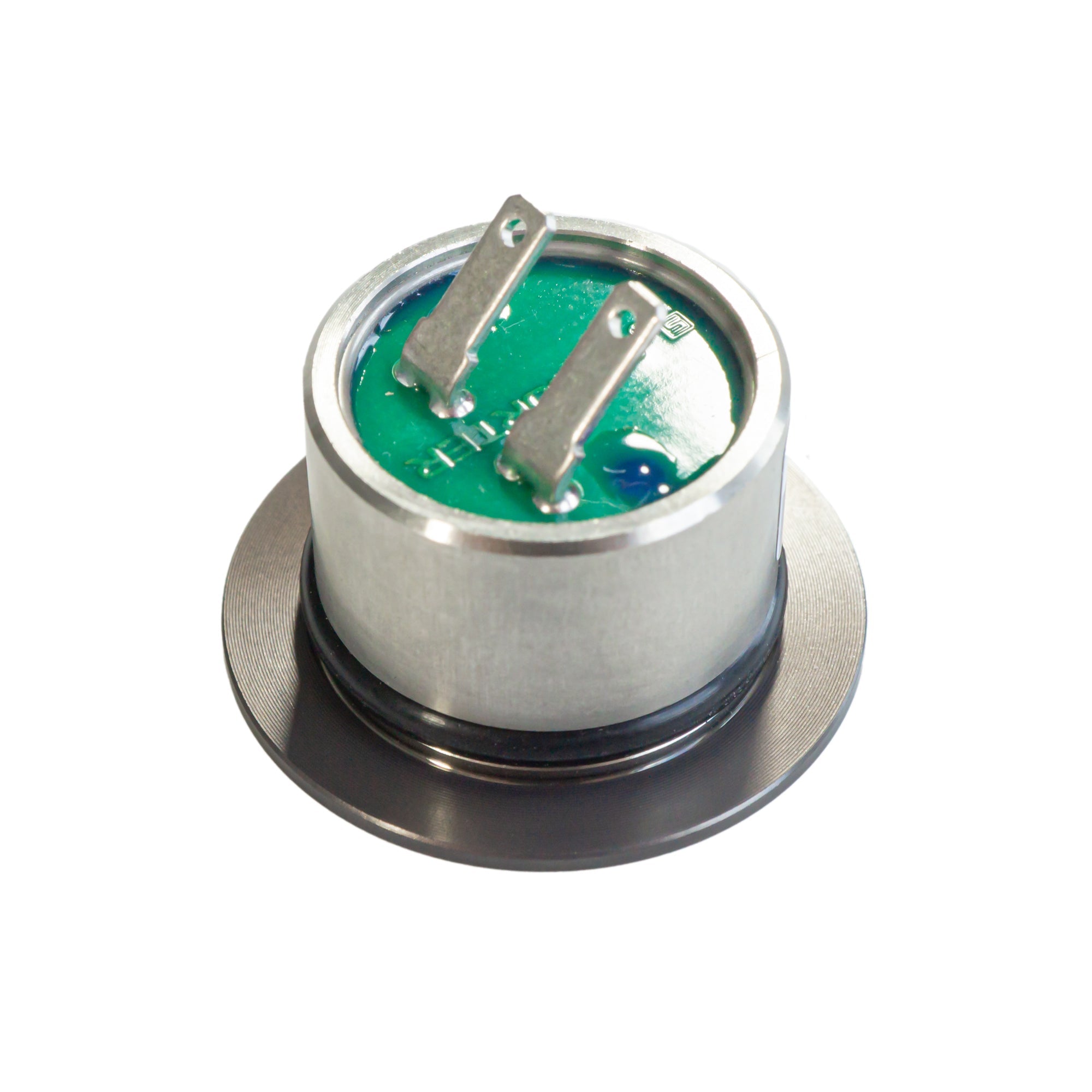

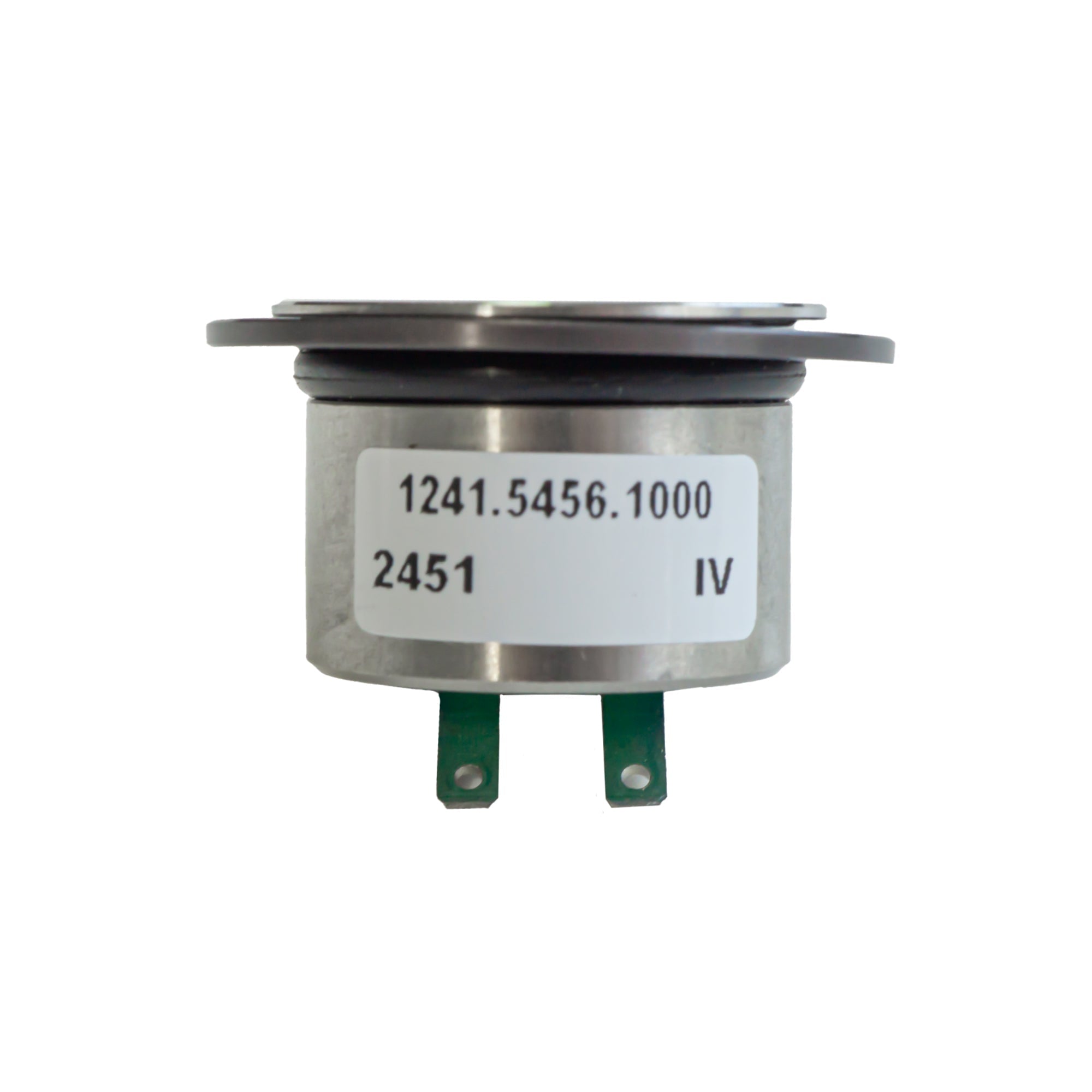

• Connection: Spade terminals


Product Information

Product: Snap-in Piezo Button Permanent Open
Version: Piezo button without symbol
Outer ring: Titanium
Part number: ELE01190
Application: Control element / spare part for automatic door systems
Function: Permanent open for automatic sliding doors

Note: The actual triggered function and the reset from permanent open mode depend on the connected door control system and its configuration. Before ordering, compatibility with the existing door control system and installation situation should be checked.
